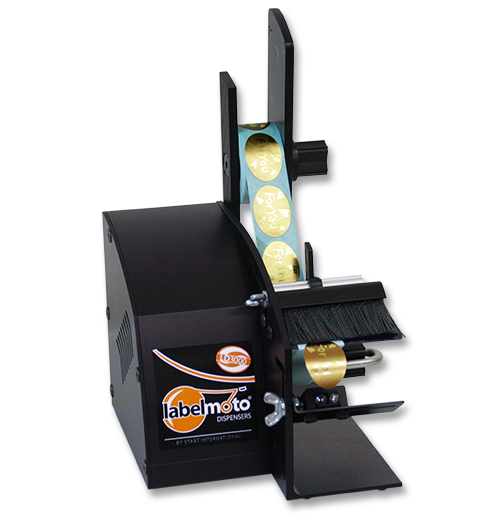

LD3000 Compact! Small work space small label. (Max 57mm width)
Features
One of the smallest label dispensers in the world.For labels 6 to 57mm (0.25 to 2.25") wide
6 to 76mm (0.25 to 3") long
Feed speed is 56mm (2.2") per second

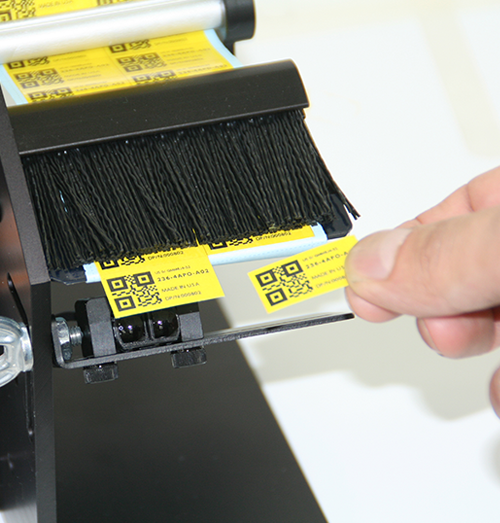

It dispenses small labels and die-cut parts
Photosensor, which ensures that the unit peels, dispenses, and advances the label roll accurately and consistently.
The liner scrap is automatically rewound for a clean working environment.
No tools are required to adjust the dispenser for different label sizes.
Specification
| Picking direction | Lift lebal up |
|---|---|
| Feed Speed | 56 mm(2.2") per second【Medium】 |
| Liner Capacity Width | 6-57mm(.25" to 2.25") |
| Label Length | 6-76mm(.25" to 3") |
| Roll core size | 25mm(1"), 76mm (3") and more |
| Roll Capacity | 152mm(6")(Surface Roll) |
| Applicable Labels | White PET, Transparent PET, Frosting silver film, Cast-coated paper, Pure paper, Kraft paper, Foil paper, Japanese paper, PP synthetic paper, Synthetic paper etc) |
| Operatable enviroment | 5℃-40℃, Under RH80% |
| Power | AC230V (100V is also available) |
| Size(W×L×H) | 155×180×235mm(without Reel Holder Arm) |
| Weight | 1,300g(without accessories) |
| Accessories | Product Manual, AC adapter, Reel Holder Arm, Core Holder and L shape allen key |
