  3. LD3000 Compact! Small work space small label. (Max 57mm width)

LD3000 Compact! Small work space small label. (Max 57mm width)

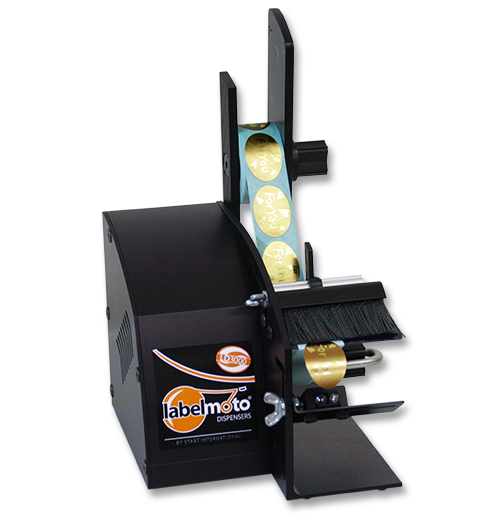

One of the smallest label dispensers in the world.
For labels 6 to 57mm (0.25 to 2.25") wide
6 to 76mm (0.25 to 3") long
Feed speed is 56mm (2.2") per second

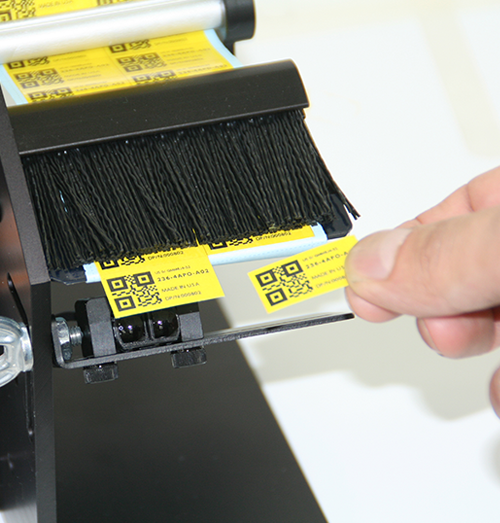

It dispenses small labels and die-cut parts
Photosensor, which ensures that the unit peels, dispenses, and advances the label roll accurately and consistently.
The liner scrap is automatically rewound for a clean working environment.
No tools are required to adjust the dispenser for different label sizes.


Picking direction Lift lebal up
Feed Speed 56 mm(2.2") per second【Medium】
Liner Capacity Width 6-57mm(.25" to 2.25")
Label Length 6-76mm(.25" to 3")
Roll core size 25mm(1"), 76mm (3") and more
Roll Capacity 152mm(6")(Surface Roll)
Applicable Labels White PET, Transparent PET, Frosting silver film, Cast-coated paper, Pure paper, Kraft paper, Foil paper, Japanese paper, PP synthetic paper, Synthetic paper etc)
Operatable enviroment 5℃-40℃, Under RH80%
Power AC230V (100V is also available)
Size(W×L×H) 155×180×235mm(without Reel Holder Arm)
Weight 1,300g(without accessories)
Accessories Product Manual, AC adapter, Reel Holder Arm, Core Holder and L shape allen key
