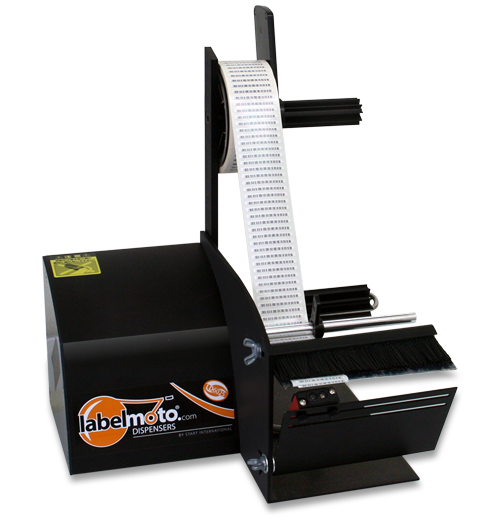

LD6025 For super small (short) label (Max 114mm width)
Features
The solution for super small (short) labels from 3mm!!For labels 6 to 114mm (0.25 to 4.6") wide
3 to 152mm (0.125 to 6") long
Feed speed is 41mm (1.6") per second

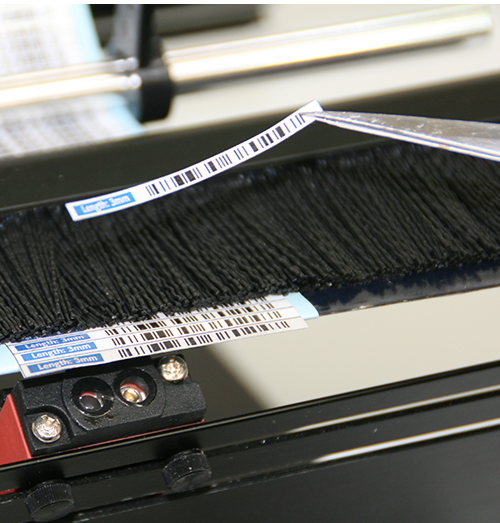

It dispenses EXTRA-SHORT small labels (bar-code) and die-cut parts

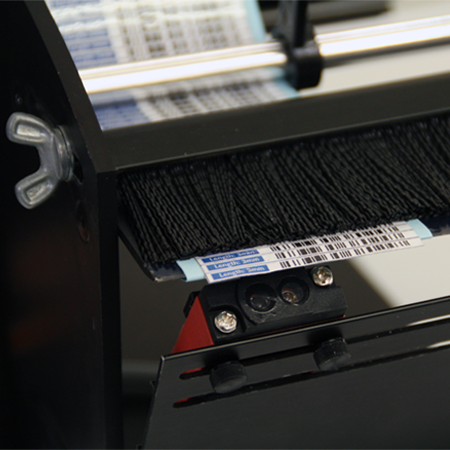

Photosensor, which ensures that the unit peels, dispenses, and advances the label roll accurately and consistently.
The liner scrap is automatically rewound for a clean working environment.
No tools are required to adjust the dispenser for different label sizes.
Specification
| Picking direction | Lift lebal up |
|---|---|
| Feed Speed | 39 mm(1.6") per second【Slow】 |
| Liner Capacity Width | "6mm to 114mm(.25"" to 4.5"") (up to 121mm without Core Holders and Reel Holder Arm)" |
| Label Length | 3mm to 152mm(.125" to 6") |
| Roll core size | 25mm(1"), 76mm (3") and more |
| Roll Capacity | 305mm(12")(Surface Roll) |
| Applicable Labels | White PET, Transparent PET, Frosting silver film, Cast-coated paper, Pure paper, Kraft paper, Foil paper, Japanese paper, PP synthetic paper, Synthetic paper etc) |
| Operatable enviroment | 5℃-40℃, Under RH80% |
| Power | AC230V (100V is also available) |
| Size(W×L×H) | 155×180×235mm(without Reel Holder Arm) |
| Weight | 3,100g(without accessories) |
| Accessories | Product Manual, Power cord, Reel Holder Arm, Core Holder and L shape allen key |
