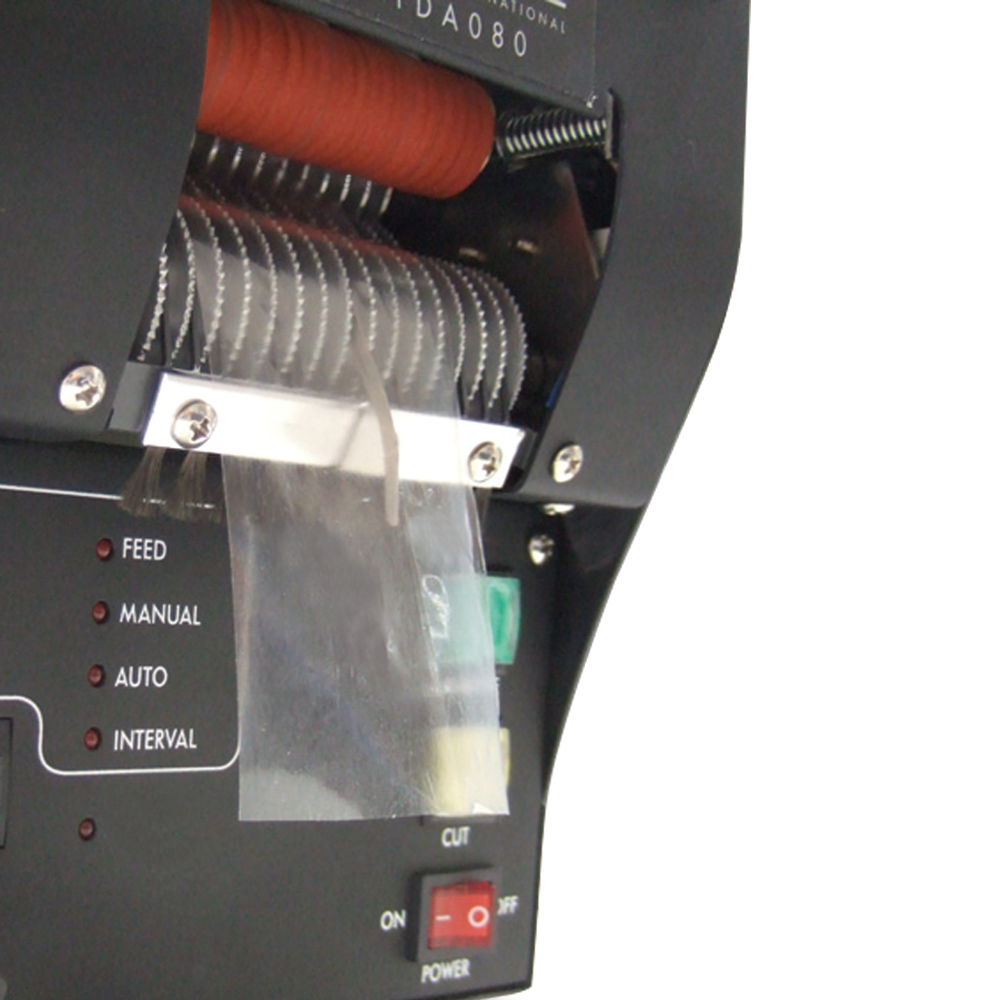

TDA080-NMSR For protection films (Max 80mm width)


Specialized in dispensing surface protective films.
Flat roller for less roller mark and removing static generated from films.
Auto feed & cut
For heavy-duty work
Compact design and heavy-duty metal construction
Length settable by 1mm inteval with LED
Dispense 40mm to 9,999mm in tape length
Acceptable Tape width from 13mm to 80mm
Tolerance ±3mm (Depend on type of material)
Four operating modes (Manual Feed / Manual Cut, Manual Feed & Cut, Auto Feed & Cut, and Interval Feed & Cut)


Tape Width 13-80mm
Cut Length 40 - 9,999mm
Feed Automatic
Cut Automatic
Cutting Edge Wave Shape
Recommend for Heavy Duty Production
Length Memory N/A
Max tape dia. 230mm
Applicable tapes Specially designed for max 80mm width Protective films and foil tapes
Operatable enviroment "5℃-40℃,Under RH80%"
Power AC230V (100V is also available)
Size(W×L×H) 168×229×360mm
Weight 11,500g
Enclosed Product Manual, 3 inch core and Silicone Oil
Country of origine China
